The vast majority of items that are created in today’s world all start out as flat pieces of metal, from the strong casing of your laptop to the beautiful exterior of an electric vehicle. But how does something that is merely a flat sheet, turn into a complex 3D part with exact measurements? The answer is Precision Sheet Metal Fabrication.
Table of Contents
If you want to learn how thin metal is manipulated through cutting, shaping, and bending to create sophisticated components, then keep reading. In this guide, we will describe how the process works and demonstrate why Global Precision Pvt Ltd has become one of the largest sheet metal manufacturers in India.
Understanding Precision Sheet Metal Fabrication?
At the most basic level, Precision Sheet Metal Fabrication is the process of converting flat sheets (steel, aluminum, copper, etc.) of metal into specific shapes and products.
The “Precision” is what makes the process unique. Precision sheet metal fabrication uses Computer Numerical Control (CNC) machines, which are very sophisticated and technologically advanced compared to rough blacksmithing, to produce precision metal parts with an accuracy of within a few thousandths of a millimeter. It does not matter if you need one prototype or 10,000 identical parts; each part will have the same precision specifications.
Why is it “Precision”?

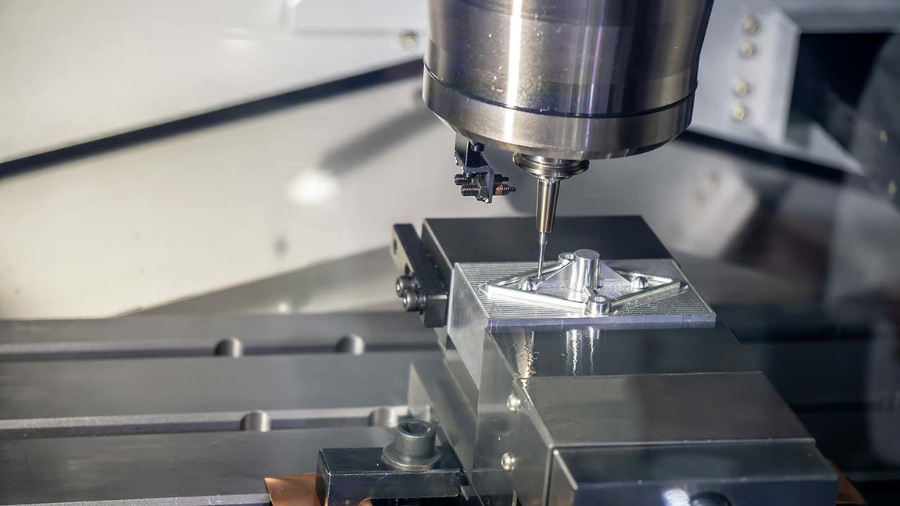

Error is impossible in sectors like telecommunications, medical devices, and aerospace. A panel will not fit into a server rack if it is 1 mm too wide. “CNC” (Computer Numerical Control) technology is used in precision fabrication to eliminate human error.
The Step-by-Step Process of Precision Fabrication
Producing a quality product made of metal does not only involve the hammering of metal into shape. There is a specific process flow for creating quality product components made of metal –

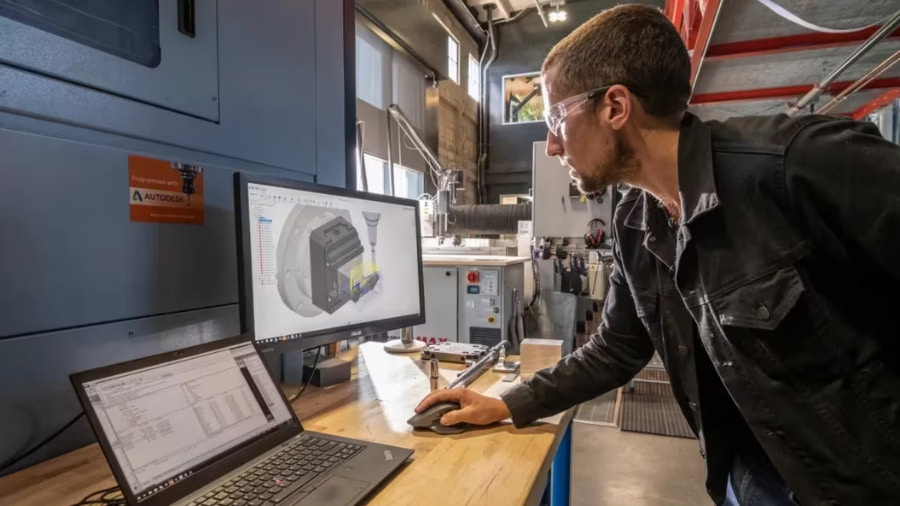

1. The Design Phase (CAD/CAM)
An engineer creates a digital “3D” model of a metal part, before any metal is worked upon. An engineer will create an electronic format of “unfolding” the metal part in 2D so that there is clarity for machines on where to cut the metal, as well as where to bend the metal.
2. Cutting the Metal
After creating the design, the flat sheet of metal will then be cut using one of the two common methods used to cut the flat Sheet metal manufacturers in India –

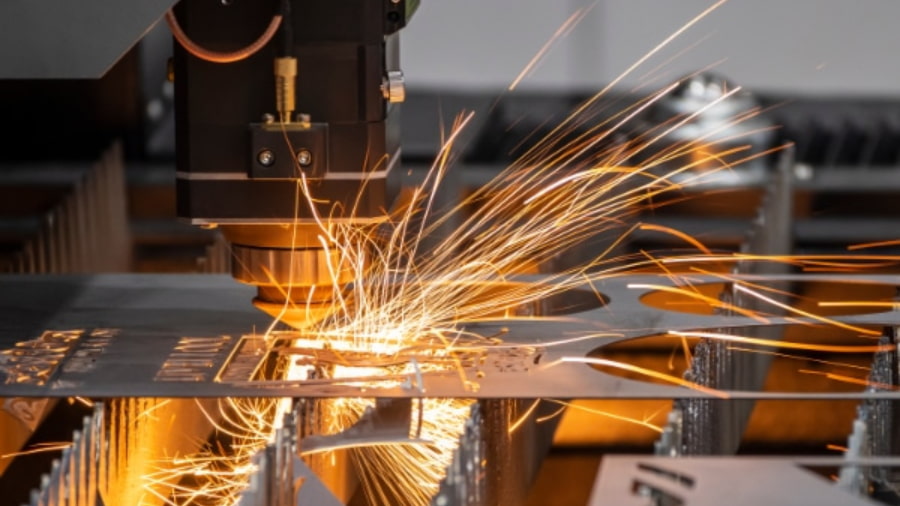

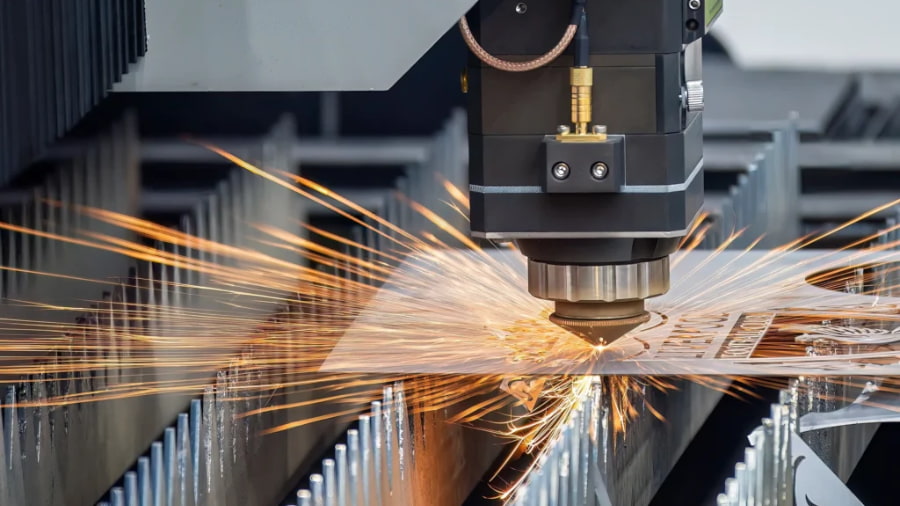

- Laser Cutting – This process utilizes a high-powered laser beam of light to melt through the flat sheet of metal at a great speed with a high level of accuracy.
- Waterjet Cutting – This method uses a high-pressure jet of water mixed with abrasive particles to cut through thicker sheets of metal without using heat.

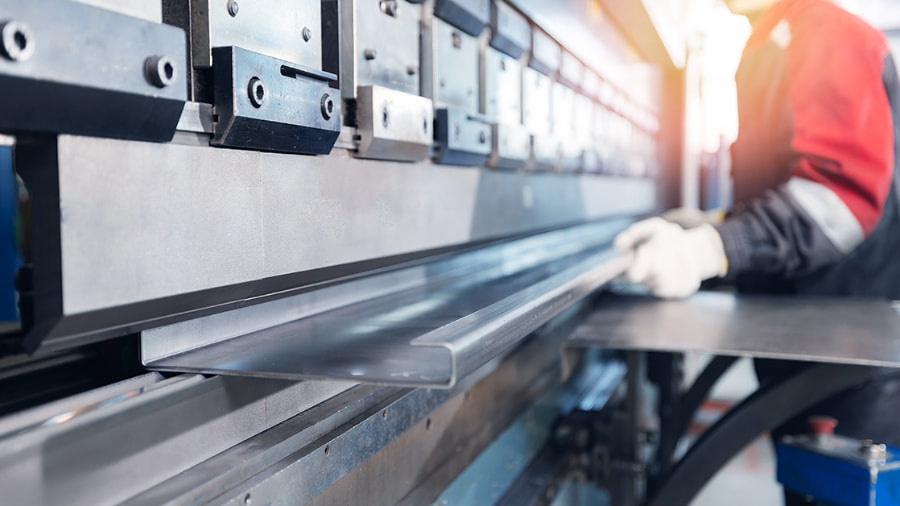

3. Bending and Forming

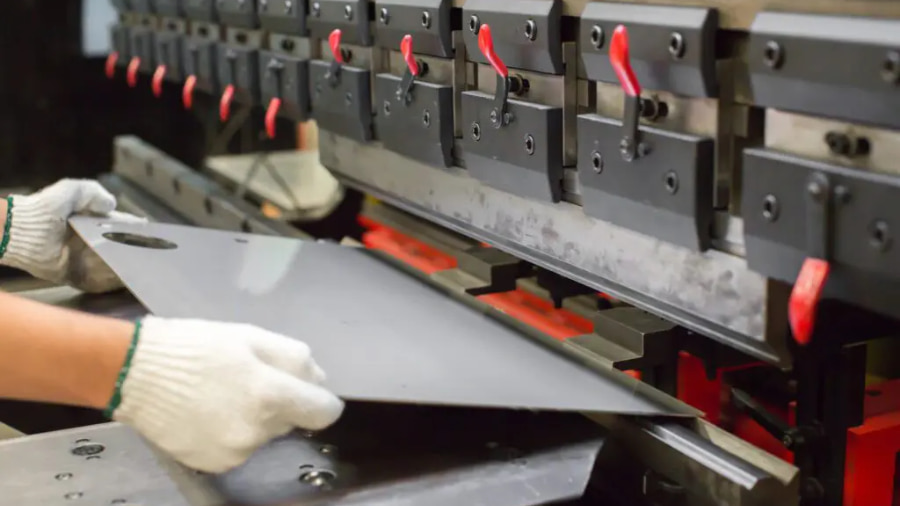

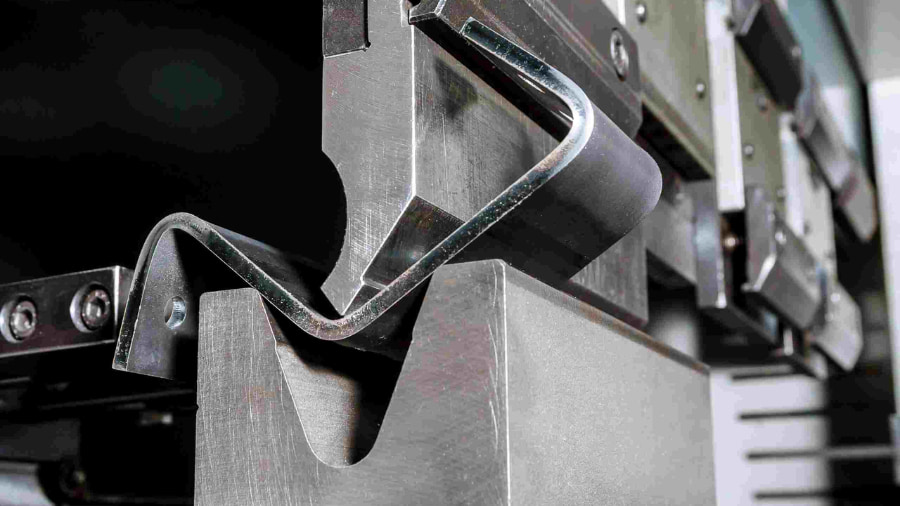

Before the flat parts are bent into shape, they have been cut out from a sheet of material (as shown above) with a machine called a press brake, which exerts great amounts of force onto the sheet at many different angles, allowing the operator to bend the sheet to a specific angle. For instance, if the design calls for an angle of 90.5°, then the machine will provide a bend to the metal at exactly 90.5°
4) Assembly and Welding of Components

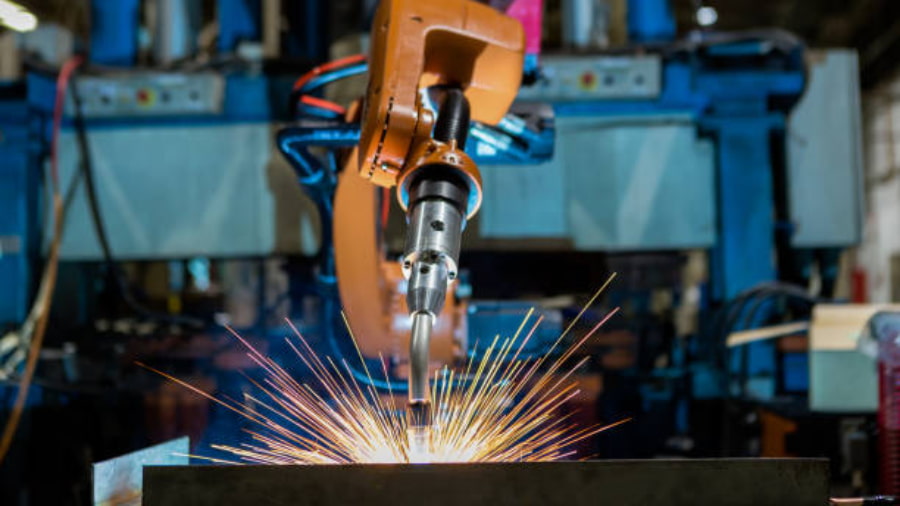

To assemble two or more sheets together, you will either weld them (i.e., melt the edges of both sheets together) or use mechanical methods such as rivets/bolts or spot welding for rapid/Fast and Strong joints. Spot welding is an assembly method commonly used in automotive assembly lines for the rapid joining of sheet metal parts.

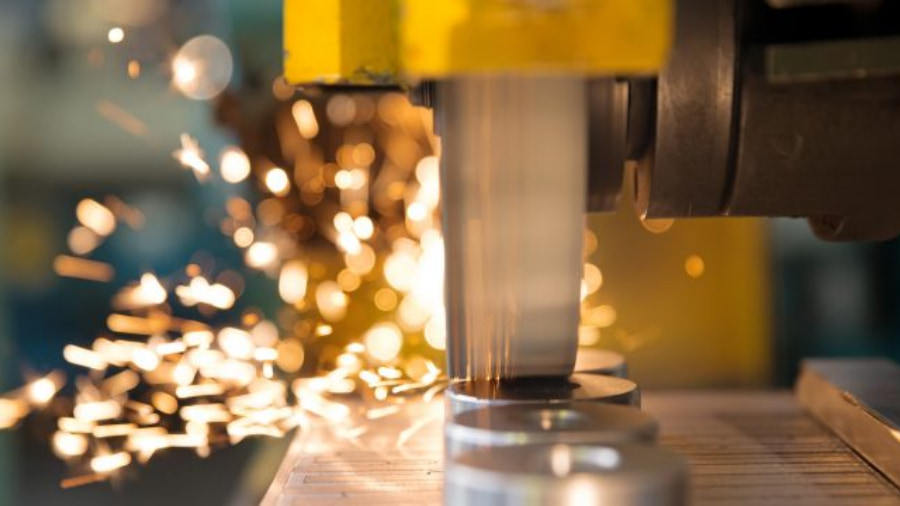

5) Manufacturing Stage 3 (Finishing)
After being bent and assembled, finished metal components will have some degree of sharp edges or be prone to corrosion. Therefore, the third stage of precision metal parts fabrication is as follows.
- Deburring – The process of removing sharp edges.
- Powder Coating – The application of a durable coloured finish to metal parts during their manufacture.
- Anodising – A chemical treatment used to protect aluminium parts from corrosion.
Benefits of Using Precision Sheet Metal Fabrication
Reasons for choosing “precision sheet metal fabrication near me” over plastic or cast iron –
1) Long-lasting – Metal is durable and can withstand heat over time.
2) Strong but Light – Sheet metal can be made thinner while still maintaining high strength.
3) Fast Turnaround – Because the process is digital, there’s a quicker transition from drawing to finished metal product within days.
4) Economical for Mass Production – Although there are time constraints associated with initial setup costs, mass production of many parts will be inexpensive once established.

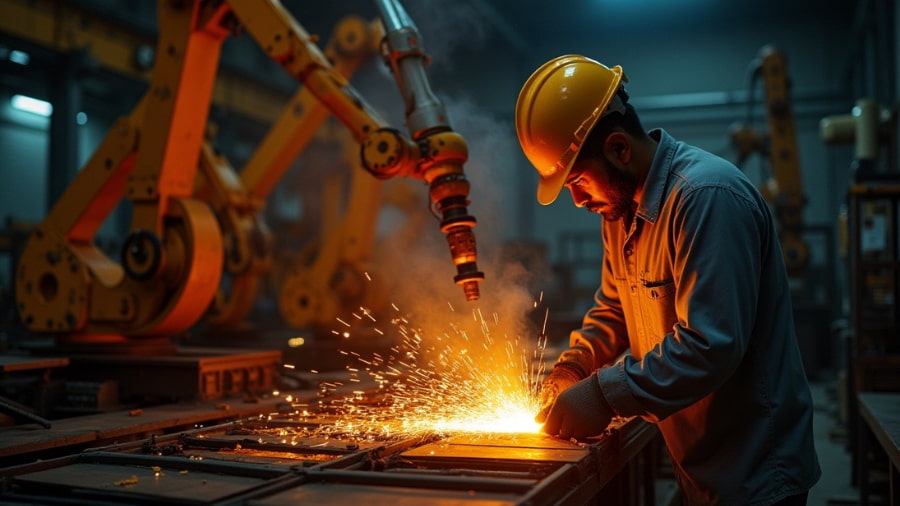

Finding the Best Partner – Precision Sheet Metal Fabrication in India
With India being recognized as a manufacturing powerhouse, it’s crucial to select the right company to partner with when looking for high-quality precision sheet metal fabrication in India services. Global Precision Pvt Ltd, located in the heart of India’s manufacturing industry, offers complete solutions for a broad range of metal needs, including precision sheet metal fabrication.
Why should you partner with Global Precision Pvt Ltd?
1. Cutting-Edge Technology – They use the latest technology in laser cutting and CNC bending machines.
2. Versatility – They are experienced in working with many different types of metals, such as stainless steel, mild steel, aluminum, and special alloys.
3. Quality Control – Each item manufactured is carefully checked to meet international standards.
4. Expert Guidance – Global Precision does not simply manufacture parts; they assist their customers in finding ways to improve the design of their existing parts to provide savings in material costs and an increase in strength.

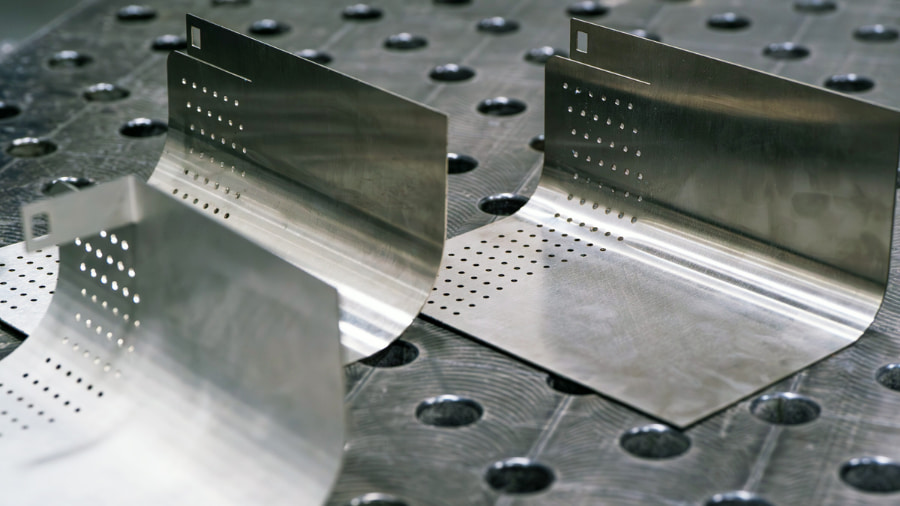

Common Applications – Where Do We See These Parts?
There’s a Lot of Precision Sheet Metal in Our Daily Lives!
- Electronics (Server enclosures, computer enclosures, telecommunications equipment).
- Medical (MRI machine housing, surgical carts, diagnostic tools).
- Automotive (Car and bus brackets, panels, and interior components).
- Energy (Solar inverter and electrical switchgear cabinets).
Conclusion
Precision Sheet Metal Fabrication, often considered the unsung hero of the manufacturing world, takes raw materials and transforms them into the complex materials that support our daily lives. Through understanding the various steps, from the initial laser cutting through to the final step of powder coating, business owners will be better prepared to make decisions regarding the development of their products.
For those searching for excellence in precision sheet metal fabrication in India, partnering with an industry leader such as Global Precision Pvt Ltd will ensure your project is executed with the high degree of precision and care it deserves.
